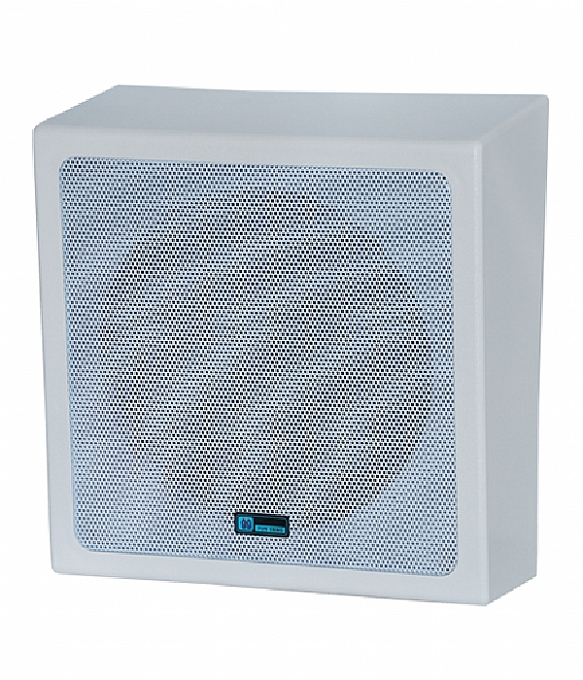

Coaxial Array Wall-mounted Speaker

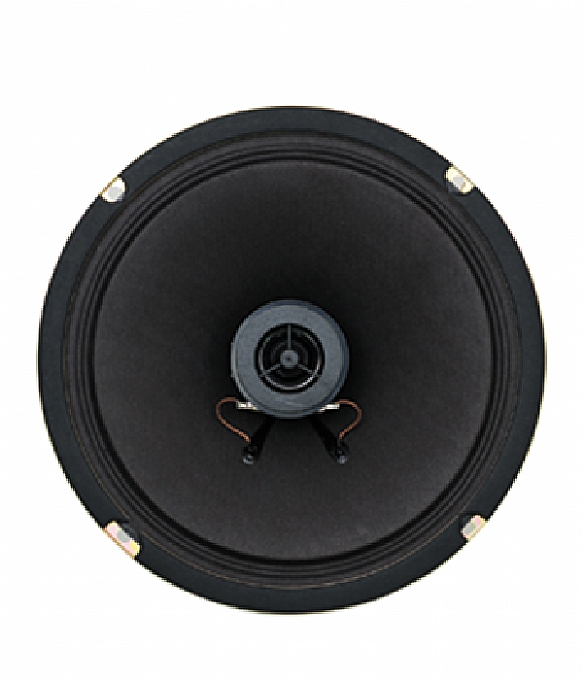

• 8 inch Coaxial Array speaker ( Full range 8" treble 1.8")

• Rated Input : 10W (can select from 3W / 5W / 6W / 10W）

• Rated Impedance : 100V，3W(3.3KΩ) / 5W(2KΩ)

                                                  6W(1.7KΩ) / 10W(1KΩ)

• Maximum acoustic pressure  : 103dB / 1m, L class

• Rated frequency range : 100Hz~10KHz

• Material / Thickness: ABS fireproof material / thickness 3.5 mm

• Panel material : Fine metal woven mesh

• Dimensions : 240(W) × 240(H) × 120(D) mm
