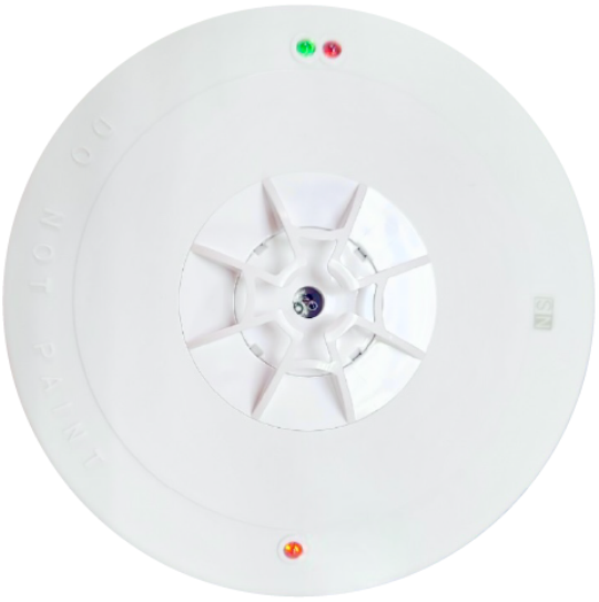

YDD-R301 Addressable Rate of Rise Heat Detector (with EOL)


Fitur Umum

  • Dilengkapi dengan tampilan status LED untuk tiga keadaan.
  • Menggunakan saklar DIP biner untuk pengaturan alamat yang mudah.
  • Indikator alarm x2, tanpa sudut buta.
  • Dapat diperluas dengan detektor konvensional, tanpa memerlukan pasokan daya eksternal.
  • Dilengkapi dengan indikator pemantauan independen, yang dapat dengan jelas menunjukkan status deteksi.
  • Fungsi pengujian sakelar reed magnetik.
  • Terkonfirmasi sesuai standar CE.
  • Teknologi transmisi ganda dengan dua kabel.
  • Dilengkapi dengan International Protection Marking IP44 (opsional).
  • Dilengkapi dengan kontak untuk lampu indikator jarak jauh dan fungsi relay (opsional).

Item

Specifications

Number of Sensitivity Settings

2 Type

Functions

  • According to the detection of the thermal components, when the temperature rises rapidly and reaches the pre-fire standard (action temperature), it responds quickly and sends the fire signal

Activating Temperature

Room Temp: +30℃ within 30seconds

Working Environment

0℃-50℃ Relative humidity of below 95%

Surface-mount Dimensions

ф 114.1 x46.4(H)mm

Ceiling Mount Dimensions

ф 140 x52.6(H)mm,

              installation holeф120mm

Dust proof/Water proof grade

IP44 waterproof base (optional)

R-type-designated E.O.L

terminal capacitor (not resistor)
